FAQ No.:00303
Category:Advanced Settings; Curtain MonGuard

Question:

How to grant control policy by user/user group in Curtain MonGuard?



Answer:Curtain MonGurard's control policies are assigned to computers by default, with support for extension to AD users or user groups. To assign policies based on AD organizational structure, first connect to AD from the Curtain Lite management console and import user information. Upon import, users/user groups are automatically assigned to the default control policy. Administrators may then manually reassign them to other control policies as needed.

Steps for enabling "Assignment of User" in Curtain Lite Admin:
1. Launch Curtain Lite Admin, open File -> Settings -> Assignment of Security Policy.

2. Choose "Assignment of User", and click "OK" button.

e-locker data loss prevention (DLP) - Assignment of User

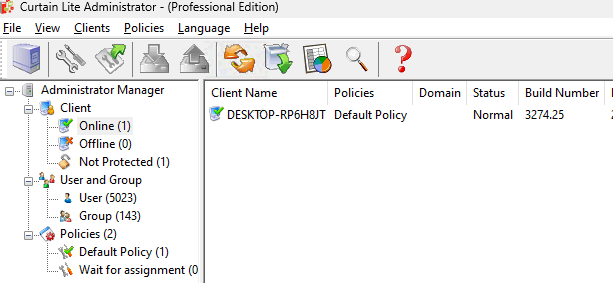

Then "User And Group" will be shown in Curtain Lite Admin.

e-locker data loss prevention (DLP) - show in Admin

3. Done.


Steps for importing users and user groups from AD domain:
1. Launch Curtain Lite Admin, open File -> Settings -> LDAP.

2. Check "Enable LDAP" button.

3. Enter LDAP server address, DNS or IP address on "LDAP Server Address".

4. "LDAP Server Port", default port is 389.

5. Recommend to enable "Use Secure LDAP Connection", it means to use secure LDAP connection to AD (default is disable).

6. Enter user name on "LDAP Username" to connect LDAP server.

7. Enter password on "LDAP Password".

8. "LDAP Search Base", enter the root of user or group , should enter CN, OU and DC .
  • for search the whole domain, enter "dc=domain name,dc=domain suffix" (e.g. "dc=test,dc=com")
  • for search the whole group, enter "ou=organizational unit name,dc=domain name,dc=domain suffix" (e.g. "ou=it,dc=test,dc=com")
  • for search single user, enter "cn=username,ou=organizational unit name,dc=domain name,dc=domain suffix" (e.g. "cn=tester,ou=it,dc=test,dc=com")

9. "LDAP Information Caching", for setup caching information of AD (default is 15 minutes).

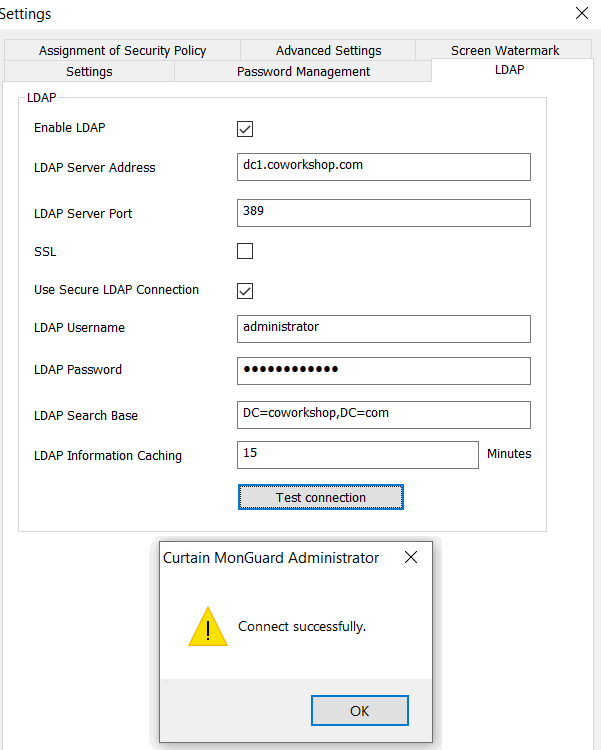

10. While setting is finished, click "Test connection" button to see whether connect to AD successfully or not.

e-locker data loss prevention (DLP) - Test connection

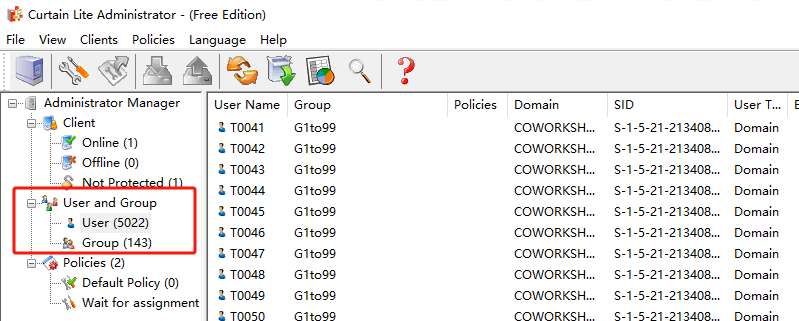

11. If AD user/user group is imported to Curtain Lite Admin successfully, they will be shown under "User And Group" in Curtain Lite Admin as below.

e-locker data loss prevention (DLP) - User And Group

12. Done.


Steps to assign users/user groups to different Control Policy Groups:
1. In Curtain Lite Admin, select User/Group in left panel. Then, Users/Groups will be listed out in the right panel.

e-locker data loss prevention (DLP) - assign users/user groups

2. Select users/groups (press Ctrl button for multiple selection).

3. Right click and select "Change Policy" to assign users/groups to appropriate Control Policy Group.

e-locker data loss prevention (DLP) - Change Policy

4. Repeat Step 2-3 for assigning other users/groups to appropriate policy groups.

5. Done.

To assign security policies, please refer to FAQ 00304 - How to assign workstations/users to Control Policy Group in Curtain MonGuard
